INTIMIDATOR 7 GEARBOX KIT

Parts List

Instruction Manual

Chassis: High strength carbon fiber, molded front bumper for
added chassis protection
Drive: Rear wheel drive
Differential: New Custom Works proprietary gearbox with 2.60
reduction and optional gear differential
Spur Gear: Machined Truespeed 48P 96 tooth spur gear

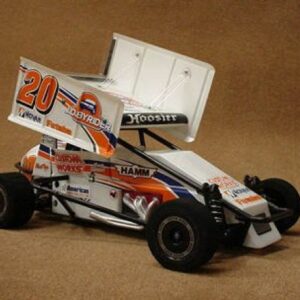

Body: Not included, Custom Works 9071 Buckeye Recommended.
Shocks: MDX V2 Aluminum Shocks with screw on seals and Ti-Nitride Coated Shock Shafts
Shock Towers: Carbon fiber front and rear.
Suspension: Front and rear aluminum mounts, patented adjustable rear
A-arms, easy access front droop screws for quick adjustment,
titanium turnbuckles
Caster: Adjustable with optional Caster Blocks
Camber: Adjustable front and rear Titanium Turnbuckles

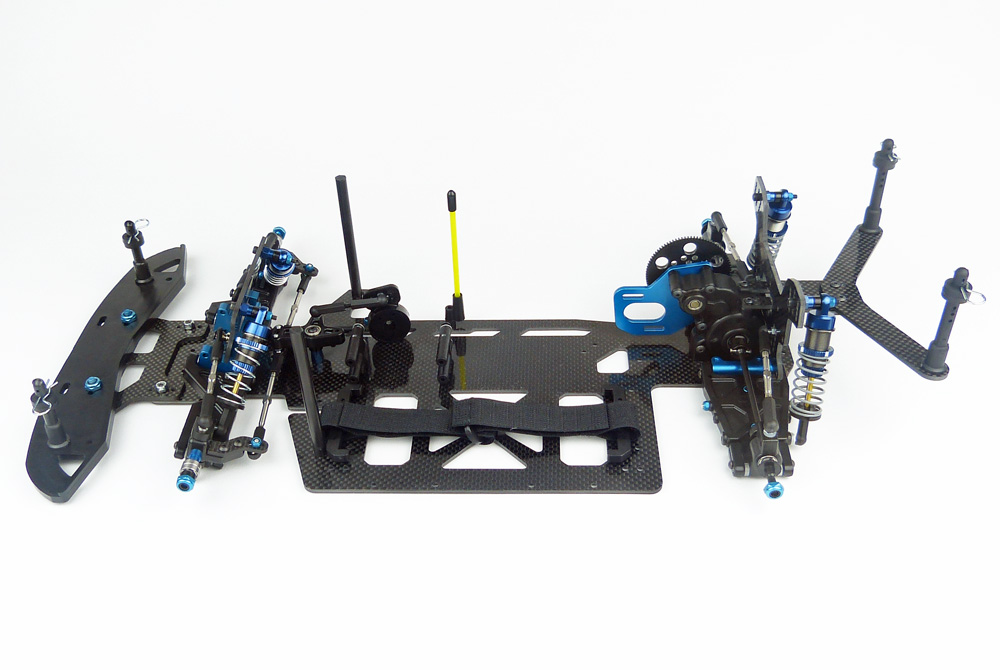

Intimidator 7 Car Kit as shown. No body, tires, wheels or electronics are included.

Radio: 2-channel with low profile steering servo
Motor: 540 size brushless
ESC: To match selected motor
Pinion Gear: 48 pitch to match spur gear and motor requirement.
Battery: 2C hard case LiPo
Battery Charger: Compatible with selected battery
Shock Oil: Silicone, 30 weight recommended
Tires and Wheels: Custom Works Foam or Rubber tires recommended.
